Chapter 22 SQL and Java
The vision for Java is to be the concrete and nails that people use to build this incredible network system that is happening all around us.
James Gosling, 2000
Learning objectives
Students completing this chapter will be able to - write Java program to process a parameterized SQL query; - read a CSV file and insert rows into tables; - write a program using HMTL and JavaServer Pages (JSP) to insert data collected by a form data into a relational database; - understand how SQL commands are used for transaction processing.
JAVA
Java is a platform-independent application development language. Its object-oriented nature makes it easy to create and maintain software and prototypes. These features make Java an attractive development language for many applications, including database systems.
This chapter assumes that you have some knowledge of Java programming, can use an integrated development environment (IDE) (e.g., BlueJ, Eclipse, or NetBeans), and know how to use a Java library. It is also requires some HTML skills because JavaServer Pages (JSP) are created by embedding Java code within an HTML document. MySQL is used for all the examples, but the fundamental principles are the same for all relational databases. With a few changes, your program will work with another implementation of the relational model.
JDBC
Java Database Connectivity (JDBC), a Java version of a portable SQL command line interface (CLI), is modeled on Open Database Connectivity (ODBC.) JDBC enables programmers to write Java software that is both operating system and DBMS independent. The JDBC core, which handles 90 percent of database programming, contains seven interfaces and two classes, which are part of the java.sql package. The purpose of each of these is summarized in the following table.
JDBC core interfaces and classes
| Interfaces | Description |
|---|---|
| Connection | Connects an application to a database |
| Statement | A container for an SQL statement |
| PreparedStatement | Precompiles an SQL statement and then uses it multiple times |
| CallableStatement | Executes a stored procedure |
| ResultSet | The rows returned when a query is executed |
| ResultSetMetaData | The number, types, and properties of the result set |
| Classes | |
| DriverManager | Loads driver objects and creates database connections |
| DriverPropertyInfo | Used by specialized clients |
For each DBMS, implementations of these interfaces are required because they are specific to the DBMS and not part of the Java package. For example, specific drivers are needed for MySQL, DB2, Oracle, and MS SQL. Before using JDBC, you will need to install these interfaces for the DBMS you plan to access. The standard practice appears to be to refer to this set of interfaces as the driver, but the ‘driver’ also includes implementations of all the interfaces.
Java EE
Java EE (Java Platform Enterprise Edition) is a platform for multi-tiered enterprise applications. In the typical three-tier model, a Java EE application server sits between the client’s browser and the database server. A Java EE compliant server, of which there are a variety, is needed to process JSP.
Using SQL within Java
In this section, you will need a Java integrated development environment to execute the sample code. A good option is Eclipse, a widely used open source IDE.
We now examine each of the major steps in processing an SQL query and, in the process, create Java methods to query a database.
Connect to the database
The getConnection method of the DriverManager specifies the URL of the database, the account identifier, and its password. You cannot assume that connecting to the database will be trouble-free. Thus, good coding practice requires that you detect and report any errors using Java’s try-catch structure.
You connect to a DBMS by supplying its url and the account name and password.
try {
conn = DriverManager.getConnection(url, account, password);
} catch (SQLException error) {
System.out.println("Error connecting to database: " + error.toString());
System.exit(1);
}The format of the url parameter varies with the JDBC driver, and you will need to consult the documentation for the driver. In the case of MySQL, the possible formats are
jdbc:mysql:database
jdbc:mysql://host/database
jdbc:mysql://host:port/database
The default value for host is “localhost” and, for MySQL, the default port is “3306.”
For example:
jdbc:mysql://www.richardtwatson.com:3306/Text will enable connection to the database Text on the host http://www.richardtwatson.com on port 3306.
Create and execute an SQL statement
The prepareStatement method is invoked to produce a Statement object (see the following code). Note that the conn in conn.prepareStatement() refers to the connection created by the getConnection method. Parameters are used in prepareStatement to set execution time values, with each parameter indicated by a question mark (?). Parameters are identified by an integer for the order in which they appear in the SQL statement. In the following sample code, shrdiv is a parameter and is set to indiv by stmt.setInit(1,indiv), where 1 is its identifier (i.e., the first parameter in the SQL statement) and indiv is the parameter. The value of indiv is received as input at run time.
The SQL query is run by the executeQuery() method of the Statement object. The results are returned in a ResultSet object.
Create and execute an SQL statement
Report a SELECT
The rows in the table containing the results of the query are processed a row at a time using the next method of the ResultSet object (see the following code). Columns are retrieved one at a time using a get method within a loop, where the integer value specified in the method call refers to a column (e.g., rs.getString(1) returns the first column of the result set as a string). The get method used depends on the type of data returned by the query. For example, getString() gets a character string, getInt() gets an integer, and so on.
Reporting a SELECT
Inserting a row
The prepareStatement() is also used for inserting a row in a similar manner, as the following example shows. The executeUpdate() method performs the insert. Notice the use of try and catch to detect and report an error during an insert.
Inserting a row
Release the Statement object
The resources associated with the various objects created are freed as follows:
stmt.close();
rs.close();
conn.close();
To illustrate the use of Java, a pair of programs is available. The first, DataTest.java, creates a database connection and then calls a method to execute and report an SQL. The second program, DatabaseAccess.java, contains the methods called by the first. Both programs are available on the book’s web site for examination and use.
❓ Skill builder
Get from this book’s supporting Web site the code of DatabaseTest.java and DatabaseAccess.java.
Inspect the code to learn how you use SQL from within a Java application.
Run DatabaseTest.java with a few different values for indiv.
Make modifications to query a different table.
Loading a text file into a database
Java is useful when you have a dataset that you need to load into a database. For example, you might have set up a spreadsheet and later realized that it would be more efficient to use a database. In this case, you can export the spreadsheet and load the data into one or more tables.
We will illustrate loading data from a text file into the ArtCollection database with the following design. Notice that there different tables for different types of art, paintings, and sculptures in this case. The code for creating the database is online
ArtCollection data model
CSV file
A comma-separated values (CSV) file is a common form of text file because most spreadsheet programs offer it as an export option. There are a variety of options available in terms of the separator for fields (usually a comma or tab) and the use of quotation marks to denote text fields. Usually, each record has the same number of fields. Frequently, the first record contains names for each of the fields. Notice in the example file that follows that a record contains details of an artist and one piece of that person’s art. As the data model specifies, these two sets of data go into separate tables.
A CSV file
firstName,lastName,birthyear,deathyear,nationality,title,length,breadth,year,style,medium
Edvard,Munch,1863,1944,Norwegian,The Scream,36,29,1893,Cubist,Oil
Claude,Monet,1840,1926,French,Bridge over a Pond of Water
Lilies,36,29,1899,Impressionist,Oil
Toulouse,Lautrec,1864,1901,French,Avril,55,33,1893,Impressionist,Oil
Vincent,Van Gogh,1853,1890,French,The Starry
Night,29,36,1889,Impressionist,Oil
Johannes,Vermeer,1632,1675,Dutch,Girl with a Pearl
Earring,17,15,1665,Impressionist,Oil
Salvador,Dali,1904,1989,Spanish,The Persistence of
Memory,9.5,13,1931,Surreal,Oil
Andrew,Wyeth,1917,2009,American,Christina's World
,32,47,1948,Surreal,Oil
William,Turner,1789,1862,English,The Battle of
Trafalgar,103,145,1822,Surreal,Oil
Tom,Roberts,1856,1931,Australian,Shearing the
Rams,48,72,1890,Surreal,Oil
Paul,Gauguin,1848,1903,French,Spirit of the Dead
Watching,28,36,1892,Surreal,WatercolorBecause CSV files are so widely used, there are Java libraries for processing them. We have opted for CsvReader. Here is some code for connecting to a CSV file defined by its URL. You can also connect to text files on your personal computer.
Connecting to a CSV file
try {
csvurl = new URL("http://www.richardtwatson.com/data/painting.csv");
} catch (IOException error) {
System.out.println("Error accessing url: " + error.toString());
System.exit(1);
}A CSV file is read a record at a time, and the required fields are extracted for further processing. The following code illustrates how a loop is used to read each record in a CSV file and extract some fields. Note the following: - The first record, the header, contains the names of each field and is read before the loop starts. - Field names can be used to extract each field with a get() method. - You often need to convert the input string data to another format, such as integer. - Methods, addArtist, and addArt are included in the loop to add details of an artist to the artist table and a piece of art to the art table.
Processing a CSV file
try {
input = new CsvReader(new InputStreamReader(csvurl.openStream()));
input.readHeaders();
while (input.readRecord())
{
// Artist
String firstName = input.get("firstName");
String lastName = input.get("lastName");
String nationality = input.get("nationality");
int birthYear = Integer.parseInt(input.get("birthyear"));
int deathYear = Integer.parseInt(input.get("deathyear"));
artistPK = addArtist(conn, firstName, lastName, nationality, birthYear, deathYear);
// Painting
String title = input.get("title");
double length = Double.parseDouble(input.get("length"));
double breadth = Double.parseDouble(input.get("breadth"));
int year = Integer.parseInt(input.get("year"));
addArt(conn, title, length, breadth, year,artistPK);
}
input.close();
} catch (IOException error) {
System.out.println("Error reading CSV file: " + error.toString());
System.exit(1);
}We now need to consider the addArtist method. Its purpose is to add a row to the artist table. The primary key, artistID, is specified as AUTO_INCREMENT, which means it is set by the DBMS. Because of the 1:m relationship between artist and art, we need to know the value of artistID, the primary key of art, to set the foreign key for the corresponding piece of art. We can use the following code to determine the primary key of the last insert.
Determining the value of the primary key of the last insert
The addArtist method returns the value of the primary key of the most recent insert so that we can then use this value as the foreign key for the related piece of art.
The call to the addArt method includes the returned value as a parameter. That is, it passes the primary key of artist to be used as foreign key of art.
The Java code for the complete application is available on the book’s web site.
❓ Skill builder
Add a few sculptors and a piece of sculpture to the CSV file. Also, decide how you will differentiate between a painting and a sculpture.
Add a method to ArtCollector.java to insert an artist and that person’s sculpture.
Run the revised program so that it adds both paintings and
sculptures for various artists.
JavaServer Pages (JSP)
Standard HTML pages are static. They contain text and graphics that don’t change unless someone recodes the page. JSP and other technologies, such as PHP and ASP, enable you to create dynamic pages whose content can change based to suit the goals of the person accessing the page, the browser used, or the device on which the page is displayed.
A JSP contains standard HTML code, the static, and JSP elements, the dynamic. When someone requests a JSP, the server combines HTML and JSP elements to deliver a dynamic page. JSP is also useful for server side processing. For example, when someone submits a form, JSP elements can be used to process the form on the server.
Map collection case
An international retailer has added a new product line to meet the needs of its changing clientele. It now stocks a range of maps. The firm’s data modeler has created a data model describing the situation . A map has a scale; for example, a scale of 1:1 000 000 means that 1 unit on the map is 1,000,000 units on the ground (or 1 cm is 10 km, and 1 inch is ~16 miles). There are three types of maps: road, rail, and canal. Initially, The retailer decided to stock maps for only a few European countries.
The retailer’s map collection data model
Data entry
Once the tables have been defined, we want to insert some records. This could be done using the insertSQL method of the Java code just created, but it would be very tedious, as we would type insert statements for each row (e.g., INSERT INTO map VALUES (1, 1000000, ‘Rail’);). A better approach is to use a HTML data entry form. An appropriate form and its associated code follow.

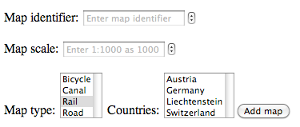

Map collection data entry form
Map collection data entry HTML code (index.html)
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Map collection</title>
</head>
</body>
<form name="MapInsert" action="mapinsert.jsp" method="post">
<p>
<label>Map identifier: <input type="number" required
pattern="[0-9]{3}" name="mapid" size="24" value=""
placeholder="Enter map identifier"></label>
<p>
<label>Map scale: <input type="number" required
pattern="[0-9]+" min="1000" max="100000" step="1000" name="mapscale"
size="24" value="" placeholder="Enter 1:1000 as 1000"></label>
<p>
<label>Map type: <select name="maptype" size="3"
placeholder="Select type of map"></label>
</p>
<option value="Bicycle">Bicycle</option>
<option value="Canal">Canal</option>
<option value="Rail" selected>Rail</option>
<option value="Road">Road</option>
</select> <label>Countries: <select name="countries" size="4" multiple
placeholder="Select countries"></label>
<option value="at">Austria</option>
<option value="de">Germany</option>
<option value="li">Liechtenstein</option>
<option value="ch">Switzerland</option>
<input type="submit" name="submitbutton" value="Add map">
</form>
</body>
</html>The data entry form captures a map’s identifier, scale, type, and the number of countries covered by the map. A map identifier is of the form M001 to M999, and a regular expression is used to validate the input.[ A map scale must be numeric with a minimum of 1000 and maximum of 100000 in increments of 1000. The type of map is selected from the list, which is defined so that only one type can be selected. Multiple countries can be selected by holding down an appropriate key combination when selected from the displayed list of countries. When the “Add map” button is clicked, the page mapinsert.jsp is called, which is specified in the first line of the HTML body code.
Passing data from a form to a JSP
In a form, the various entry fields are each identified by a name specification (e.g., name=“mapid” and name=“mapscale”). In the corresponding JSP, which is the one defined in the form’s action statement (i.e., action=“mapinsert.jsp”) these same fields are accessed using the getParameter method when there is a single value or getParameterValues when there are multiple values. The following chunks of code show corresponding form and JSP code for maptype.
Transaction processing
A transaction is a logical unit of work. In the case of adding a map, it means inserting a row in map for the map and inserting one row in mapCountry for each country on the map. All of these inserts must be executed without failure for the entire transaction to be processed. SQL has two commands for supporting transaction processing: COMMIT and ROLLBACK. If no errors are detected, then the various changes made by a transaction can be committed. In the event of any errors during the processing of a transaction, the database should be rolled back to the state prior to the transaction.
Autocommit
Before processing a transaction, you need to turn off autocommit to avoid committing each database change separately before the entire transaction is complete. It is a good idea to set the value for autocommit immediately after a successful database connection, which is what you will see when you inspect the code for mapinsert.jsp. The following code sets autocommit to false in the case where conn is the connection object.
Commit
The COMMIT command is executed when all parts of a transaction have been successfully executed. It makes the changes to the database permanent.
Rollback
The ROLLBACK command is executed when any part of a transaction fails. All changes to the database since the beginning of the transaction are reversed, and the database is restored to its state before the transaction commenced.
Completing the transaction
The final task, to commit or roll back the transaction depending on whether errors were detected during any of the inserts, is determined by examining transOK, which is a boolean variable set to false when any errors are detected during a transaction.
Completing the transaction
Putting it all together
You have now seen some of the key pieces for the event handler that processes a transaction to add a map and the countries on that map. The code can be downloaded from the book’s Web site.
mapinsert.jsp
<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
pageEncoding="ISO-8859-1"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<%@ page import="java.util.*"%>
<%@ page import="java.lang.*"%>
<%@ page import="java.sql.*"%>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Map insert page</title>
</head>
<body>
<%
String url;
String jdbc = "jdbc:mysql:";
String database = "//localhost:3306/MapCollection";
String username = "student", password = "student";
String mapid, maptype, countries;
String[] country;
int mapscale = 0;
boolean transOK = true;
PreparedStatement insertMap;
PreparedStatement insertMapCountry;
Connection conn = null;
// make connection
url = jdbc + database;
try {
conn = DriverManager.getConnection(url, username, password);
} catch (SQLException error) {
System.out.println("Error connecting to database: "
+ error.toString());
System.exit(1);
}
try {
conn.setAutoCommit(false);
} catch (SQLException error) {
System.out.println("Error turning off autocommit"
+ error.toString());
System.exit(2);
}
//form data
mapid = request.getParameter("mapid");
mapscale = Integer.parseInt(request.getParameter("mapscale"));
maptype = request.getParameter("maptype");
country = request.getParameterValues("countries");
transOK = true;
// insert the map
try {
insertMap = conn.prepareStatement("INSERT INTO map (mapid, mapscale, maptype) VALUES (?,?,?)");
insertMap.setString(1, mapid);
insertMap.setInt(2, mapscale);
insertMap.setString(3, maptype);
System.out.println(insertMap);
insertMap.executeUpdate();
// insert the countries
for (int loopInx = 0; loopInx < country.length; loopInx++) {
insertMapCountry = conn.prepareStatement("INSERT INTO mapCountry (mapid ,cntrycode ) VALUES (?,?)");
insertMapCountry.setString(1, mapid);
insertMapCountry.setString(2, country[loopInx]);
System.out.println(insertMapCountry);
insertMapCountry.executeUpdate();
}
} catch (SQLException error) {
System.out.println("Error inserting row: " + error.toString());
transOK = false;
}
if (transOK) {
conn.commit(); // all inserts successful
System.out.println("Transaction commit");
} else {
conn.rollback(); // at least one insert failed
System.out.println("Transaction rollback");
}
conn.close();
System.out.println("Database close"); // close database
%>
</body>
</html>The code in mapinsert.jsp does the following:
Creates a connection to a database
Gets the data from the map entry form
Inserts a row for a new map
Uses a loop to insert a row for each country on the map
Shows how to handle a transaction failure.
Conclusion
Java is a widely used object-oriented programming language for developing distributed multi-tier applications. JDBC is a key technology in this environment because it enables a Java application to interact with various implementations of the relational database model (e.g., Oracle, SQL Server, MySQL). As this chapter has demonstrated, with the help of a few examples, JDBC can be readily understood and applied.
Summary
Java is a platform-independent application development language. JDBC enables programs that are DBMS independent. SQL statements can be embedded within Java programs. JSP is used to support server side processing. COMMIT and ROLLBACK are used for transaction processing.
Exercises
- Write a Java program to run a parameterized query against the ClassicModels database. For example, you might report the sum of payments for a given customer’s name.
Extend ArtCollection.java so that it can handle inserting rows for multiple pieces of art for a single artist. You will have to rethink the structure of the CSV file and how to record multiple pieces of art from a single artist.
- Write a JSP application to maintain the database defined by the following data model. The database keeps track of the cars sold by a salesperson in an automotive dealership. Your application should be able to add a person and the cars a person has sold. These should be separate transactions.
