8 - Normalization

Jack coaches a softball team and wants to be able to create a database to track his players' statistics. Right now, he has the following pieces of information:

  1. A roster, including each player’s name, phone number, current school, DOB, his primary batting and catching hand, and a list of the positions he plays (with a primary position being listed first).
  2. At each game, Jack writes down the name of their opponent and keeps a statistics sheet for his team. It shows which players were present for the game, what position(s) each played during each innings, the total number of at bats he had during the game, and the outcome of each at bat. For each pitcher, Jack keeps the number of walks, strikes, hits, and home runs hit against them. He also writes down the overall score of the game.

Create a well-formed data model in 3NF.Think about what types of reports would be useful for Jack. Think broadly about this. He may need to be able to produce reports for college scouts, for player feedback, to determine who are his best pitchers, or if the team tends to slump in one inning rather than another. See attached samples of the current paper based tracking system used by Jack.

blank

Rooster for the Green Alligators Spring 2001

*note all area codes are 813 unless otherwise noted
Name Phone School DOB Batting Hand Catching Hand Positions
Terry Wilson 454-9809 Wharton 11/4/91 R R Short
Left Field
First base
Genny Gorges 918-909-0213
parent's phone		 Balls Field Prep 9/4/91 R L Pitcher
Hilda Thore 888-0909 Wharton 9/21/91 R R Center Field
Right Field
Left Field
Kerry Ilopes 918-906-8181 Christ Our Redeemer 8/3/91 L L Catcher
Third Base
Penny Pitch 454-0912 Wharton 4/12/91 R R First Base
Second Base
Short Stop
Right Field
Yolanda Gomez 454-0012
cell 654-0911		 Wharton 3/13/91 R R Pitcher
Wanda Right 454-9012 Wharton 6/14/91 R R Short Stop
First Base
Amanda Nemers 454-0019 Wharton 12/1/91 L L Third Base
Second Base
Lauren Smith 454-9923 Maderia 10/30/91 R R Catcher
Barbara Faust 787-0091 Wharton 4/12/91 L R Center Field
Left Field
Monica Wilson 454-8891 Wharton 2/12/91 L L Second Base
Center Field
Nancy Wilson 454-8891 Wharton 2/12/91 L L Center Field
Second Base
Amanda Smith 454-9999 Maderia 5/12/91 R R Left Field
Right Field
Lori McNamara 232-0909 Wharton 3/12/91 L L Pitcher

Opponents:____Orange Marmalade___________ Final Score: ______6-4_______

Date : _________5/13/02___________

blank

Defensive Stats

Name Present

blank

Position Played in Innings
1 2 3 4 5 6 7 8 9
Terry Wilson Y SS SS SS SS SS SS SS SS
Genny Gorges Y P P P P
Hilda Thore Y CF CF CF CF CF CF CF LF
Kerry Ilopes Y C C TB TB C C C C C
Penny Pitch Y SB SB RF RF SB SB SS
Yolanda Gomez Y P P
Wanda Right Y FB FB FB FB FB FB FB FB FB
Amanda Nemers Y TB TB TB TB TB TB TB
Lauren Smith Y RF C C RF RF RF RF RF
Barbara Faust Y LF LF LF LF LF LF
Monica Wilson Y SB SB CF CF
Nancy Wilson Y SB SB SB
Amanda Smith Y LF RF LF
Lori McNamara Y P P P

Opponents:____Orange Marmalade___________ Final Score: ______6-4_______

Date : _________5/13/02___________

blank

Offensive Stats

Name Batting Stats
1 2 3 4 5 6 7 8 9
Terry Wilson SO SO HIT INTO DOUBLE 3 1
Genny Gorges 2 SO POP OUT
Hilda Thore 1 1 THROWN OUT W SO
Kerry Ilopes 3 POP OUT SO 1 1 POP OUT
Penny Pitch SO SO 2
Yolanda Gomez W 1 2
Wanda Right W THROWN OUT SO THROWN OUT
Amanda Nemers SO 1 HIT INTO DOUBLE POP OUT
Lauren Smith W POP OUT SO THROWN OUT
Barbara Faust 2 2 1 SO
Monica Wilson 1 SO
Nancy Wilson SO W
Amanda Smith 1 1
Lori McNamara 2 SO

Opponents:____Orange Marmalade___________ Final Score: ________6-4_______

Date : _________5/13/02___________

blank

Pitching Stats

Name Innings Played # Walks # Strike Outs # Hits #HR
Genny Gorges 4-Jan 2 5 3 1
Yolanda Gomez 6-May 1 2 6
Lori McNamara 9-Jul 3 7 4

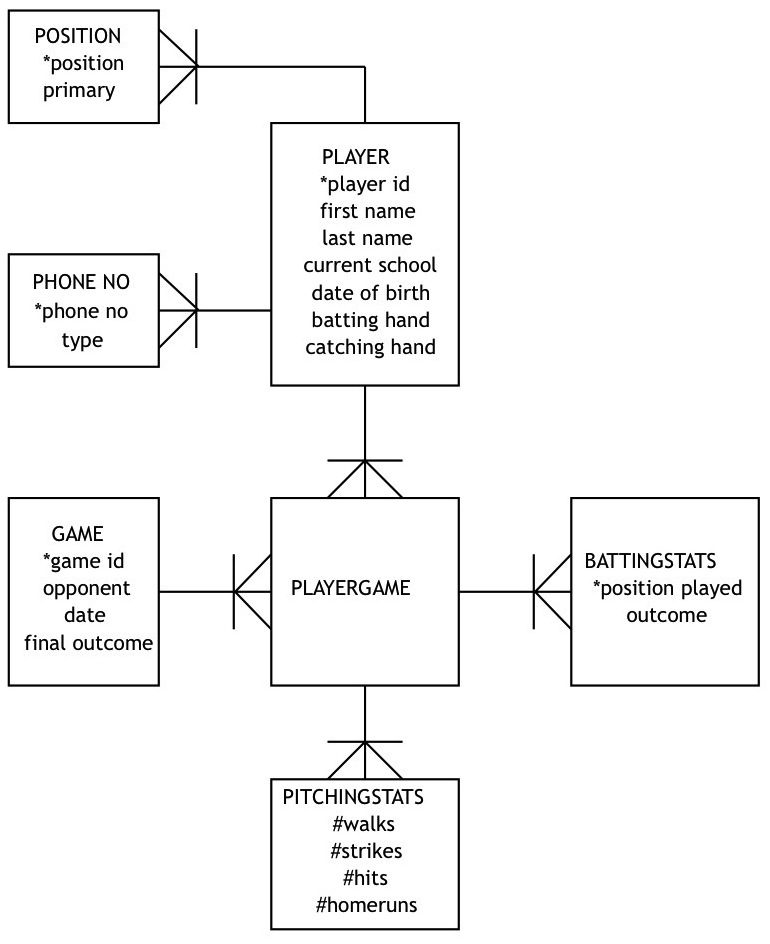

Answer
